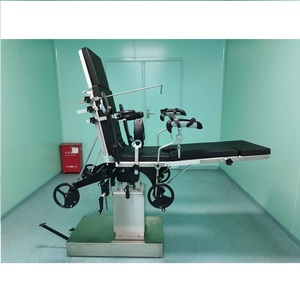

Universal Hydraulic Operating Table for Multi-Specialty Surgery
- Dual Side-Mounted Hydraulic Controls
- General, Ortho & OB/GYN Compatibility
- High-Rigidity Oil-Pump Lift System
- Radiolucent Tabletop Deck
Complete Product Portfolio
Featured Surgical Operating Tables & Examination Platforms
Select from our standard CE/FDA-certified operating theater models or request custom OEM electro-hydraulic and mechanical modifications tailored to your facility brand.

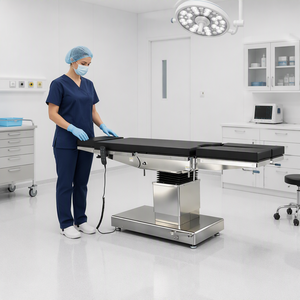

5-Section Separate Leg Stainless Steel Surgery Table
- Full 304 Stainless Steel Construction
- Modular Split-Leg Abduction Design
- Disinfectable Anti-Bacterial Padding
- Spinal & Urological Access Configuration
Multi-Position Adjustable Hospital Operating Table
- Precision Height Adjustment & Tilt
- Central Brake Foot Pedal Lock System
- C-Arm Fluoroscopy Compatible
- Cost-Effective General Surgery Unit

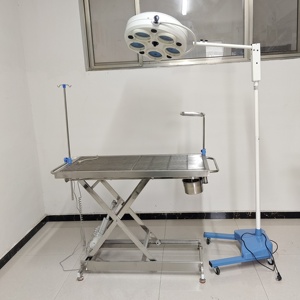

Professional Veterinary Hydraulic Stainless Steel Table
- Heavy-Duty Marine Grade Stainless Steel
- Hydraulic Foot-Pump Elevation Mechanism
- Drain Basin & Tie-Down Cleats Built-In
- Ideal for Veterinary Clinics & Research Labs

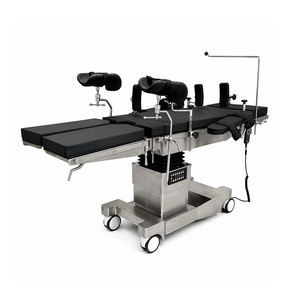

Operation Theater Table with German 12cm Caster Wheels
- German Blickle 12cm Ultra-Quiet Wheels
- Smooth Multi-Directional Mobility
- Heavy Load Balance Base Structure
- High-Frequency Disinfection Resistant

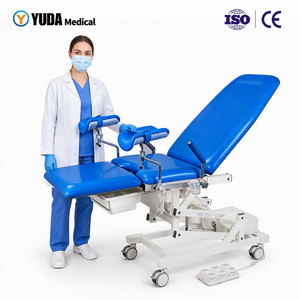

Obstetric & Gynecological Operating Examination Table
- Ergonomic Leg Stirrups & Hand Grips
- Pull-Out Stainless Fluid Basin
- Seamless Upholstery for Rapid Cleaning
- CE Certified Minor Surgery Platform

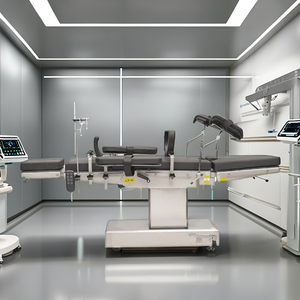

2026 Smart Four-Control Electric Surgical Operating Table
- Quad-Motor Microprocessor Control
- One-Touch Zero Position & Memory Presets
- 2-Year Full Warranty + Spare Parts Support
- Integrated Emergency Battery Backup

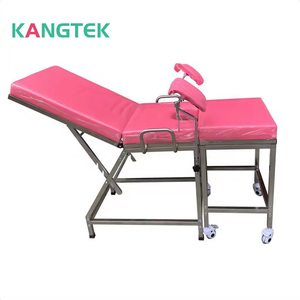

Heavy-Duty Obstetric Delivery & Birthing Operating Bed
- Reinforced Stainless Steel Base Chassis
- Multi-Angle Backrest & Seat Tilting
- Removable Auxiliary Table Extension
- Designed for Maternity Hospitals & Clinics
Whitepaper Level Engineering
OEM & ODM Technical Capabilities: Customizing Next-Gen Operating Tables
As a global contract manufacturer for medical equipment brands, hospitals, and government health tenders, our engineering division offers full-stack customization. We bridge the gap between complex surgical requirements and scalable, cost-effective manufacturing.
Radiolucent Carbon Fiber Decks
Custom engineering of carbon fiber tabletop panels with total length radiolucency. Offers low aluminum equivalency (< 1.0mm Al) ensuring distortion-free 360° 3D C-Arm and O-Arm intraoperative imaging for neurosurgery and vascular procedures.
Electro-Hydraulic Actuation
Precision dual-pump micro-hydraulic systems sourced from top European suppliers (Hoerbiger / Bucher). Smooth, micro-step movement for Trendelenburg, lateral tilt, flex/reflex, and longitudinal sliding up to 350mm without noise or vibration.
Sterilization & Hygiene Standards
Constructed with electro-polished 304 or 316L stainless steel cladding. Seamless high-density polyurethane memory foam pads sealed via ultrasonic welding, meeting IPX4 liquid ingress protection for easy washdown.
Streamlined B2B Process
Our Custom OEM Manufacturing Workflow
From conceptual CAD design and prototype rapid-builds to international compliance testing and mass assembly, we provide turnkey ODM/OEM solutions.
01
Requirements & Specs
Joint evaluation of load capacities, movement angles, actuation mechanisms, and private labeling guidelines.
02
3D CAD & Engineering
Finite element analysis (FEA) modeling for structural stability and radiolucency beam path optimization.
03
Prototype & Testing
Physical prototype build subject to 4x overload fatigue tests, EMC testing, and IEC 60601 safety validation.
04
Mass Production
ISO 13485 certified clean assembly lines with laser-cutting precision and robotic TIG welding.
05
Global Delivery
Drop-shipping, custom wooden crates, multi-language manuals, and spare parts kit provisioning.
Why Partner With Us
Backed by 30+ Years of Manufacturing Leadership & Global Parent Enterprise
As part of the world-renowned Hoffmann Family of Companies (operating 240+ businesses worldwide), our surgical bed manufacturing operations leverage unrivaled financial stability, deep supply chain integration, and rigorous US and European engineering management standards.
Hospital & Clinical Trust Indicators
- 30+ Years of Innovation: Pioneer in adjustable height surgical and long-term care bed systems since 1989.
- 100% Quality Auditing: Every table undergoes 24-hour hydraulic pressure drop tests and electrical dielectric strength checks before dispatch.
- Complimentary 30-Day Evaluation: Risk-free in-facility demo trial program available for hospital procurement boards and clinical evaluators.
- Comprehensive Warranty: Up to 2-year full replacement warranty with guaranteed lifetime spare parts availability.
OEM Procurement & Supply Chain Benefits
- Factory Direct Pricing: Eliminating distributor markups to maximize profit margins for medical equipment brand distributors.
- Custom Branding & Color Matching: Custom powder coating, laser-etched corporate logos, and customized hand-controller membranes.
- Flexible MOQ & Lead Times: Rapid turnaround times for tender bids, supporting both small custom orders and volume containers.
- Global Logistics Support: Express air and ocean freight shipping to USA, Canada, Europe, Latin America, and Middle East.
Industry Outlook Whitepaper
Future Procurement Trends: Operating Table Innovations (2026–2035)
Hospital procurement directors and surgical equipment OEMs must align their technical specifications with emerging surgical modalities. Here are the core technological vector shifts shaping the next decade of operating room purchasing:
1. Robotic Surgery Integration
Modern operating tables require synchronized Bluetooth and CAN-bus communication protocols to interface with robotic surgical arms (e.g., Da Vinci systems). Auto-paired motion prevents collisions during intraoperative repositioning.
2. Ultra-Low Height & Bariatric Needs
Surgeons increasingly demand ultra-low table height settings (< 500mm) for comfortable seated ENT and neurosurgery. Concurrently, rising global obesity rates require dynamic load capacities exceeding 450 kg without hydraulic drift.
3. IoT Telemetry & Predictive Maintenance
Next-gen tables feature embedded micro-sensors monitoring hydraulic pressure, motor temperature, and battery health cycle data, broadcasting alerts to hospital biomedical engineering teams prior to hardware failure.
Technical Matrix
Operating Table Series Specifications Comparison
Compare core parameters across our OEM surgical table platforms to match your hospital's surgical discipline requirements.
| Model Series | Actuation System | Max Load Capacity | Longitudinal Shift | Radiolucency (C-Arm) | Primary Specialties |
|---|---|---|---|---|---|
| Universal Hydraulic Series | Oil-Pump Manual Hydraulic | 250 kg (550 lbs) | Optional 250mm | Standard Polycarbonate / Carbon | General Surgery, Emergency, OB/GYN |
| 5-Section Stainless Split-Leg | Hydraulic / Electro-Hydraulic | 300 kg (660 lbs) | 300mm Sliding Deck | High Transmissivity Composite | Urology, Orthopedics, Spinal, ENT |
| 2026 Quad-Control Electric | Micro-Processor Electro-Hydraulic | 450 kg (1000 lbs) | 350mm Full-Body Shift | 100% Carbon Fiber Deck (<0.8mm Al) | Hybrid OR, Vascular, Neurosurgery, Bariatric |
| Obstetric & Delivery Series | Hydraulic Mechanical / Electric | 220 kg (485 lbs) | N/A (Modular Extension) | Pelvic Area Radiolucent | Maternity, Gynecology, Minor Surgery |
| Veterinary Surgical Series | Heavy Duty Foot-Pump Hydraulic | 180 kg (400 lbs) | N/A (V-Top Tilting) | Optional Stainless / Acrylic | Veterinary Hospitals, Animal Research |
Procurement Knowledge Base
Frequently Asked Questions for B2B & OEM Buyers
Everything you need to know about custom branding, lead times, regulatory compliance, and warranty support.
Q:
What is the Minimum Order Quantity (MOQ) for custom OEM branding?
Our standard MOQ for minor customization (custom logos, specialized mattress colors, and localized hand-controller labels) is 5 units. For complete structural redesigns or custom casting molds, MOQ typically ranges from 10 to 20 units depending on the engineering complexity.
Q:
What international regulatory certificates do your surgical tables carry?
All our medical operating tables are manufactured in ISO 13485 certified facilities and comply fully with CE Medical Device Regulation (MDR 2017/745) and IEC 60601-2-46 (particular requirements for basic safety and essential performance of operating tables). FDA 510(k) cleared options are available for US market distributors.
Q:
Are carbon fiber tabletop panels fully radiolucent for 3D C-Arm imaging?
Yes. Our high-end electro-hydraulic models utilize premium carbon fiber composite decks with an aluminum equivalence rating below 1.0mm Al. This eliminates metallic shadow artifacts during intraoperative fluoroscopy, X-ray, and 3D C-Arm scans across the entire patient length.
Q:
How does your 30-Day Free Trial / Evaluation Program work?
For qualified healthcare facilities, hospital groups, and tender committees, we provide a 30-day in-facility demonstration unit. Our clinical sales specialists assist with setup and staff training. If the product does not meet your hospital’s operational expectations, it can be returned with zero purchasing obligation.
Q:
What is the typical production lead time for bulk supply contracts?
Standard catalog models are stocked for fast dispatch within 7 to 14 days. Custom OEM production runs generally take 30 to 45 calendar days from final 3D CAD approval and deposit receipt, ensuring thorough quality testing prior to ocean or air freight loading.
Q:
How are replacement spare parts handled under warranty?
We supply a complimentary critical spare parts kit (including seals, fuses, switches, and hand controller cables) with volume OEM orders. Replacement parts under our 2-year warranty are dispatched via express air courier within 48 hours of notification.
Start Your Custom OEM Project Today
Partner with a Trusted Global Surgical Table Manufacturer
Contact our engineering sales team to request full product catalogs, technical CAD drawings, tender documentation, or factory-direct pricing quotes.
Need Immediate Technical Assistance? Toll-Free Support: 1-800-633-6068
