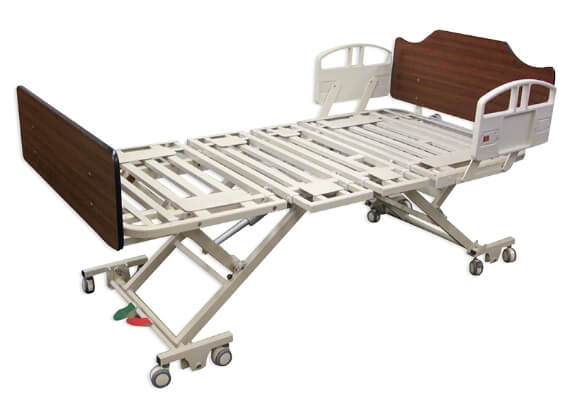

NOA Elite EX Expandable Electric Long Term Care Bed
The NOA Elite EX Bed delivers an advanced, versatile solution engineered specifically to satisfy the rigorous clinical and operational demands of modern long-term care facilities, nursing homes, and rehabilitation centers worldwide.
Featuring an integrated, tool-less deck expansion system, the Elite EX adjusts seamlessly from standard 35" width up to 39" or 42" bariatric widths, and extends from 80" to 84" in length. Built with a ultra-low 7" deck height to reduce resident fall risk and a 600 lbs safe working load, this bed meets stringent IEC 60601-2-52 international safety standards.
Key Clinical Features & B2B Value
Designed with decades of manufacturing experience to lower facility maintenance costs, safeguard staff, and enhance resident comfort.
Tool-Less Deck Expansion
Eliminate extra equipment expenses with integrated width expansion (35", 39", 42") and length expansion (80" to 84"). Caregivers can reconfigure the bed instantly without tools.
Fall Risk Management
Low deck height capability of just 7 inches off the floor drastically reduces fall injury severity for at-risk residents, supporting proactive resident safety compliance.
Self-Leveling Motor System
Equipped with ultra-quiet, self-leveling motors and a 10-button ergonomic handset, allowing smooth Trendelenburg/Reverse Trendelenburg and comfort positioning.
Feature Configurations
Standard Features
- Integrated Deck Expansion System (Width: 35" / 39" / 42", Length: 80" / 84")
- Intuitive 10-Button Ergonomic Handset
- Center Step Central Locking System
- Integrated Trapeze Holder & Baseboard Bumper
- Swivel Locking Casters with Directional Caster Guides
- Self-Leveling High-Torque Electric Actuator Motors
Optional Accessories & Upgrades
- Custom Wood Grain Headboard & Footboard Options (Oak, Cherry, Walnut)
- Soft Touch Ergonomic Side Safety Rails
- Universal & Folding Assist Bars for Mobility Support
- Footboard-Mounted Staff Control Console with Lockout Function
- Free-Standing Trapeze System & Fall Protection Floor Pads
- Pressure Redistribution Therapeutic Foam Mattresses
Technical Specifications
Complete engineering specification matrix for healthcare procurement officers and facility bio-med engineers.
| Specification Parameter | Engineering Detail |
|---|---|
| Bed Length Range (Tool-Less Expansion) | 80" / 84" (203 cm / 213 cm) |
| Bed Width Range (Tool-Less Expansion) | 35" / 39" / 42" (89 cm / 99 cm / 107 cm) |
| Overall Width with Side Rails | 40" / 44" / 47" (102 cm / 112 cm / 119 cm) |
| Overall Bed Length (with Head/Footboards) | 84.5" / 88.5" (215 cm / 225 cm) |
| Deck Travel Height Range | 7" to 30" (17.8 cm to 76.2 cm) |
| Safe Working Load (SWL) | 600 lbs (272 kg) |
| Maximum Back Angle Adjustment | 65° |
| Maximum Hip-to-Knee Angle Adjustment | 30° |
| Safety Standards & Certifications | IEC 60601-2-52 Compliant, FDA Registered Manufacturing |
| Base Product Model Part Number | 1001000GRY-T (Elite EX 35" x 80") |
