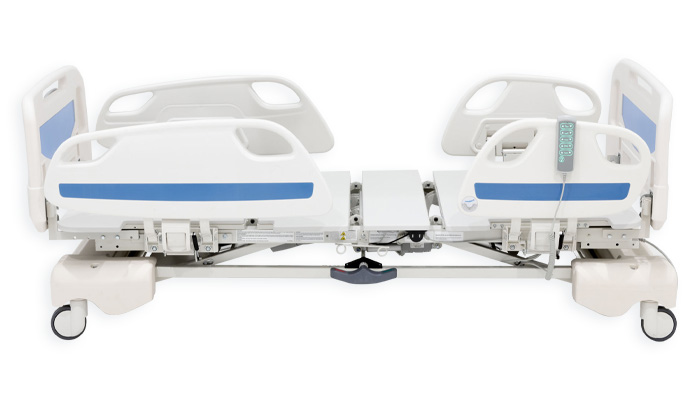

NOA Hospital Platinum NS Bed for Acute Care Facilities
Acute Care Division IEC 60601-2-52 Compliant B2B Direct Supply

NOA Platinum NS Hospital Bed System

Engineered specifically for acute care hospital environments, the NOA Platinum NS Hospital Bed balances premium clinical positioning functionality with cost-effective procurement pricing. Featuring an intuitive digital nurse control panel with real-time status readouts, quick-release CPR head deck, and central locking system, this bed system optimizes patient recovery while reducing caregiver strain and operational downtime.

Safe Working Load
600 lbs (272 kg)
Deck Height Range
17" to 32.5"
Patient Surface
34.5" x 80"
Frame Warranty
15 Years Structural

Standard Engineering & Safety Features

Digital Nurse Control Panel: Integrated real-time readouts, lockout controls, angle indicators, and height status.
One-Button CPR Quick Release: Rapid head deck flattening for emergency clinical procedures.
High-Impact Boards: Quick-release head and footboards designed for rapid patient access.
One-Hand Dropdown Side Rails: Smooth, intuitive rail operation ensuring patient entrapment protection.
Central Locking System: 5-inch heavy-duty casters with central and directional steering lock.
Under-Bed Safety Lighting: Low-consumption LED guidance for enhanced night-time patient safety.
10-Button Backlit Handset: Y-cable connection operable from either side of the frame for patient comfort chair adjustments.
Self-Leveling Motors: Precision electric motors with automatic load-balancing and battery backup system.

Technical & Dimensional Specifications

Specification Parameters Clinical Measurement
Safe Working Load (SWL) 600 lbs / 272 kg
Overall Bed Dimensions (Width x Length) 39.5" W x 86" L (Includes side rails & boards)
Patient Sleep Surface Dimensions 34.5" W x 80" L
Electric Deck Height Range 17" Min - 32.5" Max
Trendelenburg / Reverse Trendelenburg Angle 14 degrees max elevation
Maximum Backrest Elevation Angle 70 degrees
Maximum Hip-Knee Articulation Angle 35 degrees
Structural Frame & Deck Weld Warranty 15 Years Limited Warranty
Control Electronics Warranty 4 Years Limited Warranty

Optional Clinical Configurations & Accessories

Clinician Side Rail Controls: Integrated inner/outer rail keypads for patient positioning and nurse call.
Pressure Redistribution Foam Mattress: Medical-grade anti-decubitus pressure relief surface.
Free-Standing Patient Trapeze Assembly: Heavy-duty patient transfer and self-positioning assistant bar.

Global Procurement & Part Numbers

Product Configuration Description Global Part Number
NOA Platinum NS Acute Care Hospital Bed (35" x 80" Deck) 1055036GRY

Global B2B Supply & Regulatory Compliance

Hoffmann NOA Medical Industries is a certified manufacturer supplying healthcare facilities, hospital groups, and government medical procurement departments worldwide. All acute care bed platforms undergo rigorous testing to ensure compliance with strict international medical safety guidelines.

IEC 60601-2-52 Safety Certified
FDA Compliant Manufacturing
ISO 13485 Quality Management
30+ Years Global OEM/ODM Experience
