Full-Electric Precision Positioning
Equipped with smooth DC actuators allowing independent elevation of head, foot, and overall bed height. Caregivers can execute rapid cardiac chair positioning to assist patient breathing and recovery.
High-Acuity Acute Care Solution
Engineering Superior Comfort and Safety in Modern Hospitals

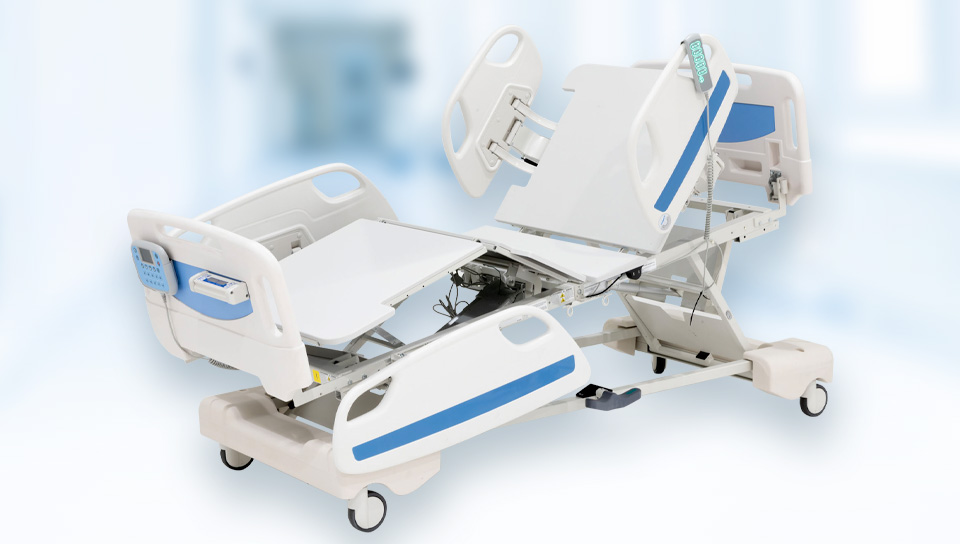

The NOA Hospital Platinum SC Plus Bed is engineered specifically to satisfy the rigorous demands of acute care hospital wards, intensive care units (ICU), and surgical recovery rooms. Developed through over three decades of clinical manufacturing experience, this bed system pairs full-electric precision positioning with unmatched durability for hospital procurement managers and international healthcare distributors.
Featuring intuitive caregiver hand controls, optional integrated scale modules, and seamless Trendelenburg/Reverse Trendelenburg adjustments, the Platinum SC Plus Bed improves patient outcomes while substantially minimizing caregiver physical strain.
Safe Working Load
500 lbs / 227 kg
Height Adjustment Range
7.5" to 30" (Low Bed Capability)
Deck Width & Length
36" Wide x 80" Length
Compliance Standards
ISO 13485 / FDA Registered / IEC 60601-2-38
Commercial Features
Key Capabilities for Global Procurement & Healthcare Facilities
Designed with high-density steel frames, antimicrobial powder coating, and ultra-quiet electric actuators for maximum clinical reliability.
Integrated Trendelenburg Functions
Instant activation of Trendelenburg and Reverse Trendelenburg tilt angles (up to 14 degrees) supports urgent clinical protocols, hemodynamic stability, and post-operative care management.
Ultra-Low Height Fall Protection
Lowers to just 7.5 inches off the floor to prevent fall-related injuries among vulnerable or disoriented patients, eliminating the need for restrictive side restraints when appropriate.
Ergonomic Caregiver Control Panel
Intuitive lock-out functions on the footboard panel prevent unauthorized patient adjustments, while dual side-rail control switches provide seamless operation for medical staff.
Heavy-Duty Caster & Central Lock
High-grade 5-inch casters with central braking systems enable effortless emergency transport across hospital wards and smooth floor transitions.
Seamless Infection Control
Constructed with smooth, non-porous surfaces and durable powder-coated steel designed for rigorous hospital-grade disinfectants and infection prevention standard operating procedures.
Technical Data Sheet
Platinum SC Plus Engineering Specifications
| Specification Parameter | Technical Metric / Description |
|---|---|
| Overall Bed Length | 84.5 inches (214.6 cm) |
| Overall Bed Width | 36 inches (91.4 cm) / Optional 39" Extension Side Rails |
| Mattress Deck Height Range | 7.5 inches minimum to 30 inches maximum (19 cm to 76 cm) |
| Maximum Safe Working Load | 500 lbs (227 kg) combined patient and accessory weight |
| Head Deck Elevation Angle | 0° to 65° continuous electric adjustment |
| Foot/Knee Gatch Elevation | 0° to 35° continuous electric adjustment |
| Trendelenburg / Reverse Tilt | ±14° motorized clinical tilt positioning |
| Emergency CPR Release | Manual quick-release CPR lever located on both sides of head deck |
| Caster System | 5-inch heavy-duty swivel casters with central lock and steer pedals |
| Electrical Requirements | 100-240V AC, 50/60 Hz universal power supply with backup battery option |
| International Certifications | ISO 13485:2016, FDA Class II Registered, IEC 60601-1, IEC 60601-2-38, CE Mark |
Why International Healthcare Buyers Choose NOA Medical
With over 30 years of specialized manufacturing experience, Hoffmann NOA Medical Industries delivers hospital beds that comply with strict global regulatory standards and OEM/ODM buyer requirements.
30+ Years
US Manufacturing & Engineering Expertise
ISO 13485
Certified Quality Management Systems
Global Logistics
Exporting to USA, Canada, LATAM & Asia-Pacific
B2B Support
OEM/ODM Solutions & Container Bulk Shipping
B2B Sourcing & Procurement
Request Product Documentation & Bulk Pricing
Download complete CAD drawings, technical datasheets, and user manuals or request a quotation directly from our international sales team.
Get Catalog
