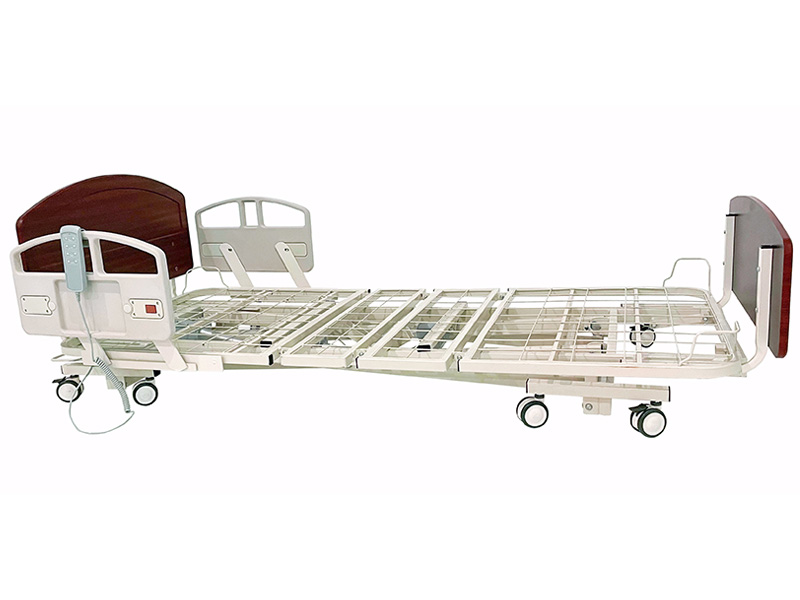

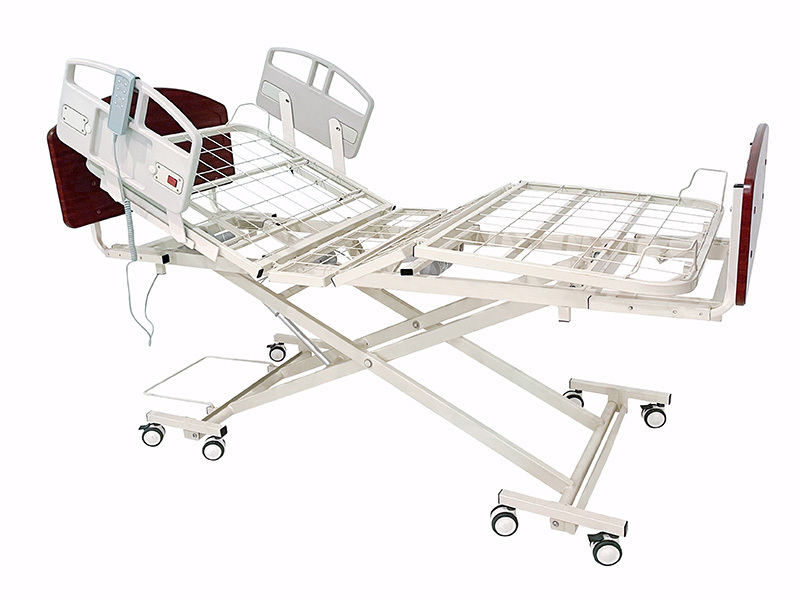

NOA EliteCare 3-motor full electric long term care bed for nursing home facilities

Medical Innovation

NOA EliteCare — High Performance & Exceptional Value

The NOA EliteCare is purpose-engineered to deliver premium electric bed positioning at an economical investment level for nursing homes, skilled nursing facilities, and healthcare institutions worldwide. Powered by a advanced three-motor system, the EliteCare allows precise adjustment of head elevation, knee gatch, and vertical bed height.

With an ultra-low height capability of 7.75 inches from the floor, the EliteCare significantly minimizes resident fall risks and caregiver strain during patient transfers. Built in accordance with strict IEC 60601-2-52 safety standards, it combines heavy-duty structural stability with smooth, quiet electronic positioning.

IEC 60601-2-52 Standard Certified

450 lbs (204 kg) Safe Working Load

7.75" to 29" Height Travel Range

10-Year Frame & Deck Warranty

Technical Parameters

Product Specifications & Engineering Metrics

Comprehensive dimensional and mechanical specifications for global healthcare procurement officers and facility managers.

Technical Parameter	Specification Details
Product Part Number	1001004GRY-T
Safe Working Load (Capacity)	450 lbs (204 kg)
Deck Height Range	7.75" (low position) to 29" (high position)
Sleep Deck Length	80" (203 cm)
Sleep Deck Width	35.5" (90 cm)
Overall Bed Length	84.5" (without head/footboards) / 85" (with head & footboards)
Maximum Back Angle Adjustment	72° degrees full electric articulation
Maximum Hip-Knee Angle Adjustment	43° degrees articulating leg section
Motor Drive System	3-Motor self-leveling quiet DC drive linear actuator system
Safety Certification Standards	FDA Compliant, Certified to IEC 60601-2-52 standards
Warranty Coverage	3-Year full electronic warranty; 10-Year frame, deck, and bed structural warranty

Configuration & Accessories

Standard Features & Optional System Accessories

Engineered with intuitive controls, robust materials, and modular options to fit tailored nursing care protocols.

Standard Technical Features

3-Motor Linear Drive: Provides independent electronic elevation for head, knee, and total bed height.

Ultra-Low Riser Range: Lowers to 7.75" to significantly reduce resident fall-related injury hazards.

Self-Leveling Motors: Ensures smooth, balanced vertical motion across all operational height cycles.

8-Button Hand Pendant: Ergonomic, intuitive patient and caregiver handset controller with clear icon labeling.

Swivel Locking Casters: Smooth mobility for facility repositioning with secure locking mechanisms.

Ventilated Grid Deck: Provides superior mattress support, easy infection prevention cleaning, and air circulation.

Removable Bumper: Integrated baseboard protection bumper prevents damage to hospital walls and doors.

Optional System Accessories

Custom Head & Footboards: Available in multiple wood-grain laminate finishes to match facility aesthetic themes.

Soft Touch Assist Rails: Ergonomic patient repositioning assist rails with tactile, slip-resistant grip surfaces.

Standard & Folding Assist Bars: Versatile side assistance options supporting safe resident egress and bed entry.

Pressure Redistribution Foam Mattress: Medical-grade pressure relief mattresses engineered to prevent pressure ulcers.

Free Standing Trapeze Unit: Robust patient-assist trapeze bar supporting independent upper body movement.

Bedside Fall Protection Mats: High-density impact absorption mats for added safety in high fall-risk care plans.

Authoritative Manufacturing

Why Healthcare Procurement Teams Choose NOA Medical

Over 30 years of specialized manufacturing experience delivering reliable patient bed technology across international medical markets.

Strict International Compliance

Our manufacturing protocols adhere to rigorous global quality management benchmarks, including FDA regulations and IEC 60601-2-52 medical bed safety standards.

Long-Term Structural Durability

Constructed with reinforced steel framing and powder-coated finishes, supported by a 10-year structural warranty for maximum ROI in long term care facilities.

Global B2B Supply Chain

Serving healthcare chains, distributors, and government procurement offices in North America, Latin America, the Caribbean, and Europe with robust export packaging.

Direct Manufacturer Procurement

Request Commercial Pricing & Technical Documentation

Partner directly with Hoffmann NOA Medical for volume pricing, technical specifications, OEM custom options, and global container shipment quotes.

Get a Quote

EliteCare Long Term Care Bed
